Data Center BBU Power: Key MOSFET Selection Criteria & Goford Solutions

Driven by iterative upgrades of AI computing servers, 48V telecom power supplies and high-power BBU units toward 48V high-voltage busbars, kiloampere-level charge/discharge currents, compact high-density miniaturization, and 24/7 uninterrupted operation, the performance requirements for MOSFETs have become extremely stringent.

I. Core Evaluation Metrics (Essential Reading for Engineers)

1. High Efficiency & Low Power Loss: Low on-resistance (Rds(on)) and low gate charge to deliver system efficiency above 99%.

2. Wide Safe Operating Area (SOA) & Impulse Withstand Capability: Withstand power-on inrush current, instantaneous heavy loads and millisecond-scale switching surges.

3. Ultra-Low Leakage Current: Minimize static power consumption with negligible leakage during long-term standby and high-voltage turn-off states.

4. High Reliability & Extended Service Life: Stable performance with no parameter drift over 10 years of continuous operation under high temperature and humidity.

5. High Power Density Packaging: Fit compact rack enclosures and liquid cooling environments with optimized heat dissipation performance.

II. Common Industry Pain Points

1.Conventional MOSFETs suffer excessive leakage current under high voltage, boosting static power loss.

2.Pulse surges easily exceed the SOA limit, triggering BBU pre-charging failures.

3.Long-term high-temperature operation causes Rds(on) drift, gradually degrading system efficiency year by year.

III. Goford Customized Solutions for Data Centers

1. 48V Backplane Hot-Swap Switches (Core Scenario Requiring Wide SOA)

When AI servers and BBU units perform live hot swapping on the 48V busbar, large-capacity rear-end capacitors generate inrush currents ranging from hundreds to over a thousand amperes. During power-on pre-charging and current limiting phases, MOSFETs operate continuously in the linear region under high Vds and heavy current. Ordinary devices with narrow SOA are prone to thermal runaway and breakdown, resulting in complete equipment power failure and downtime.

Key Device Advantages

·Broad SOA coverage for DC and all pulse conditions from 1 microsecond to 10 milliseconds, drastically enhanced power dissipation tolerance in the linear region to keep hot-swap surges fully within safe operating limits.

·150V breakdown voltage fully covers 48V float charging, sudden load shedding and inductive turn-off transient voltage spikes of 60–80V, eliminating breakdown risks.

·Ultra-low internal resistance cuts steady-state conduction heat generation, keeping temperature rise under control under full load in IDC machine rooms.

·TOLL high-current packaging supports continuous currents exceeding 200A per single device, reducing parallel component count and simplifying high-density backplane layout design.

Recommended Main Part Numbers & Applicable Circuits

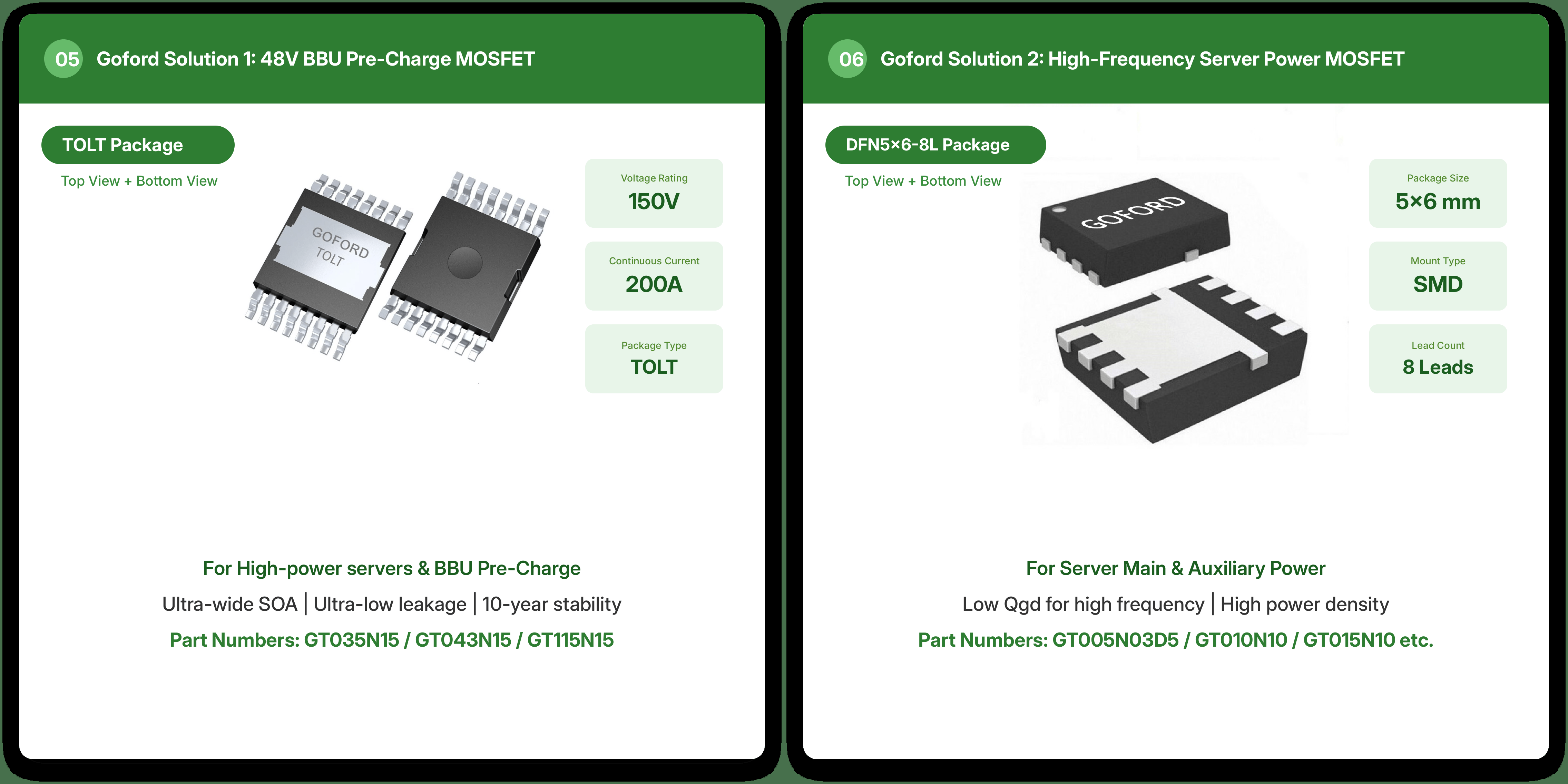

GT035N15 / GT043N15 / GT115N15 (150V rated voltage, TOLL packaging): Suitable for secondary high-voltage switches in legacy 48V systems, high-power loops for large-capacity BBU pre-charging and battery balancing, supporting continuous hundred-ampere currents with low internal resistance to suppress temperature rise.

2. Solution: High-Frequency MOSFETs for Server Main & Auxiliary Power Supplies (LLC / Interleaved Parallel Topologies)

Core Advantages

1. Ultra-low gate-drain charge (Qgd) greatly reduces switching loss under high-frequency operation, compatible with high-frequency topologies ranging from 50 kHz to MHz level.

2. Optimized matching with mainstream power architectures including LLC and interleaved synchronous rectification, significantly boosting overall system power density.

3. Standardized DFN5×6 surface-mount packaging compatible with automated SMT production lines, lowering customers’ total equipment manufacturing costs.

Recommended Main Part Numbers & Applicable Circuits

·GT005N03D5: 30V PQFN5×6 with double-sided heat dissipation, dedicated to low-voltage auxiliary power supplies and load switches of servers.

·GT010N10 / GT015N10 / GT013N10 / GT016N10: 100V TOLL/DFN packaging, flagship devices for server main power stages, synchronous rectifiers and bidirectional DC-DC converters.

Power supply engineers and IDC architects are welcome to discuss component selection and solution optimization.
